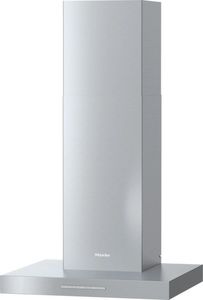

Product Dimensions 2.25"h x 23.63"w x 19.75"d
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and ensure that a large proportion of the grease is separated. When it is removed, the integrated fall protection system means that it can be handled safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that they do not discolour when washed in the dishwasher and continue to look good long term.Read More
Timeless design – canopy 23 5/8 (598) in (mm) wide
Powerful, in Booster level
Efficient filtration - 10-ply stainless-steel grease filter
Safe and easy to clean - Miele CleanCover
Suitable for every home - with extraction or recirc. abilities
Stainless steel grease filters (10-layer). Easy to use and effective against grease. Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Miele CleanCover. Convenience and safety in detail. Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and ensure that a large proportion of the grease is separated. When it is removed, the integrated fall protection system means that it can be handled safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that they do not discolour when washed in the dishwasher and continue to look good long term.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
General Specs | |
| Width (in.) | 23.63 |
| Height (in.) | 2.25 |
| Duct Size (in.) | 6'' round |
| Depth (in.) | 19.75 |
| Color | Stainless Steel |
| MPN | 12784090 |
| Appliance Fit Width (cm.) | 60 |
| Color/Finish Name | Stainless Steel |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Range Hood Type | Wall Mounted |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Product Weight (lbs.) | 47 |
| Appliance Fit Width (in.) | 24 |
| Smart Compatible | No |
| Maximum CFM | 510 |
| Grease Filter Type | Stainless Steel |
| Bulb Type | LED |
| Fan Speed Options | 4 |
| Vent Location | Custom |
| Width (cm) | 60.02 |
| Height (cm.) | 5.72 |
| Depth (cm.) | 50.17 |
| Product Weight (kg) | 21.32 |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
| Range Hood Features | Light, Dishwasher Safe Filter, Removable Grease Filter, Automatic Shut Off |
| Ventilation Type | Convertible (Both) |
| Range Hood Trim Color | Stainless Steel |
