Product Dimensions 1.5"h x 23.5"w x 10.75"d

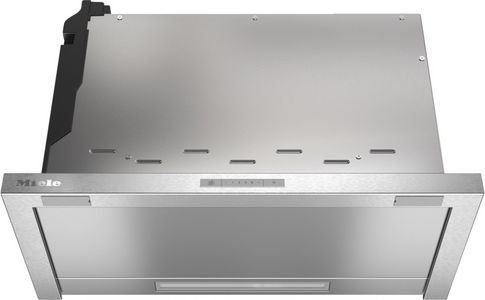

Miele Insert Range Hoods are the perfect solution for seamlessly integrating ventilation into your kitchen design. With powerful extraction performance, adjustable fan speeds, and efficient filtration systems, Miele Insert Range Hoods effectively remove smoke, odors, and grease while cooking. Their sleek and discreet design seamlessly blends into cabinetry, offering both functionality and aesthetic appeal.Read More
Additional Savings Available
Slimline ventilation hood with EasySwitch controls for convenient operation
Classic design – stainless steel panel, 60 cm (24") wide
LED strip for uniform lighting
Efficient filtration - 10-ply stainless-steel grease filter
Safe and easy to clean - Miele CleanCover
Recirculation mode – Active AirClean or Longlife AirClean filter (sold separately)
To remove odours with a Miele Recirculation Ventilation Hood, you can use active charcoal filters. This disposable filter has to be replaced on a regular basis.
Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and ensure that a large proportion of the grease is separated. When it is removed, the integrated fall protection system means that it can be handled safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that they do not discolour when washed in the dishwasher and continue to look good long term.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
Longlife filters can be refreshed/reactivated in any oven using Convection Bake at 200°C (400°F) for 60 minutes. This heat releases odours from the active charcoal molecules. We recommend completing a refresh semi-annually and fully replace the filter after 3 years.
The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
General Specs | |
| Width (in.) | 23.5 |
| Height (in.) | 1.5 |
| Depth (in.) | 10.75 |
| Color | Stainless Steel |
| MPN | 11878490 |
| Appliance Fit Width (cm.) | 60 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 24 |
| Product Weight (lbs.) | 31 |
| Bulb Type | LED |
| Vent Location | Top |
| Height Above Cooktop | 24.13 |
| Width (cm) | 59.69 |
| Height (cm.) | 3.81 |
| Depth (cm.) | 27.31 |
| Product Weight (kg) | 14.06 |
| Height Above Cooktop Centimeter | 61.29 |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable, Automatic Shut Off, Light, Removable Grease Filter |
| Ventilation Type | Convertible (Both) |
Operating Modes | |
| Type of air guide | Convertible |
| Recirculation conversion kit (order separately) | DUU 151 |
| Active charcoal filter (order separately) | DKFS 31-P |
User Convenience | |
| Electronic controls | Yes |
Filter System | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 1 |
