Product Dimensions 17.75"h x 35.25"w x 10.88"d

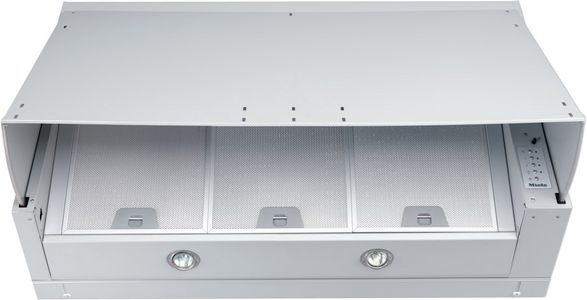

Miele Slot-In Ventilation Hoods are a seamless integration of style and functionality in your kitchen. Designed to fit discreetly into your cabinetry, these hoods offer powerful extraction performance while maintaining a sleek and streamlined appearance. With advanced features like efficient filters, intuitive controls, and quiet operation, Miele slot-in ventilation hoods provide effective ventilation without compromising on aesthetics.Read More
Additional Savings Available
To remove odours with a Miele Recirculation Ventilation Hood, you can use active charcoal filters (sold separately). This disposable filter has to be replaced on a regular basis.
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.
Invisible - can be concealed with kitchen décor
Powerful - Booster setting
Suitable for every home - with extraction or recirculating abilities
For perfect functionality - accessories for proper venting
General Specs | |
| Width (in.) | 35.25 |
| Height (in.) | 17.75 |
| Duct Size (in.) | 6" Round |
| Depth (in.) | 10.88 |
| Color | Custom |
| MPN | 7200060 |
| Appliance Fit Width (cm.) | 90 |
| Manufacturer Warranty | 1 Year Parts & Labor |
| Color Finish Name | Custom |
| Range Hood Type | Wall Mounted |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 36 |
| Product Weight (lbs.) | 43 |
| Bulb Type | Halogen |
| Fan Speed Options | 3 |
| Vent Location | Top |
| Height Above Cooktop | 24.13 - 26 |
| Width (cm) | 89.54 |
| Height (cm.) | 45.09 |
| Depth (cm.) | 27.64 |
| Product Weight (kg) | 19.5 |
| Height Above Cooktop Centimeter | 61.29 - 66.04 |
| Voltage | 120 |
| Amp | 15 |
| Frequency | 60 |
| Range Hood Features | Light, Removable Grease Filter, Filter Indicator, Ductless Capable |
| Ventilation Type | Convertible (Both) |
Construction Type | |
| Slot-in ventilation hood | Yes |
| Colour | Stainless steel |
Operating Modes | |
| Type of air guide | Convertible |
User Convenience | |
| Electronic controls | Yes |
| Programmable booster level switch-off | Yes |
Filter System | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
| Number of dishwasher-safe metal grease filters | 2 |
Lighting | |
| Number x W | 2 x 20 W |
| Light intensity in Lx | 630 lx |
Technical Data | |
| Minimum height above electric cooktops in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktops (max. 12.6 kW total output, burner ≤ 4.5 kW) in. (mm) | 26 (660) |
| Dual-action fan | Yes |
| AC motor | Yes |
| Length of power cable in m | 3 (1.2) |
| Number of phases | 1 |
Accessories Supplied | |
| Installation template | Yes |
| Non-return flap | Yes |
